Ceiling Fan Remote Hacking

cc1101, esp8266, home assistant


In this post I will be covering how I modified the "owenb321/hampton-bay-fan-mqtt" to work with some "Home Decorations #1001 415 438" fans I had installed a while back. The fans make use of a pretty standard remote control "model number: TX028C-S", however the only repository I found did not produce compatible codes for the fans prompting me to create this offshoot of the repo.

I will cover the basics. I went through reverse engineering the commands sent to \ from the fans along with how I was able to recreate them and send it back to the fans successfully. This was a fun journey where I needed to do a lot of binary maths \ manipulation to get everything working.

You can skip all of this and just get the source code here if you would like.

Required Hardware and Setup

In order to follow along you will need to have access to the following hardware:

Module Wiring

Depending on your CC1101 module, your wiring may be different, please ensure that you check your modules specific wiring before continuing.

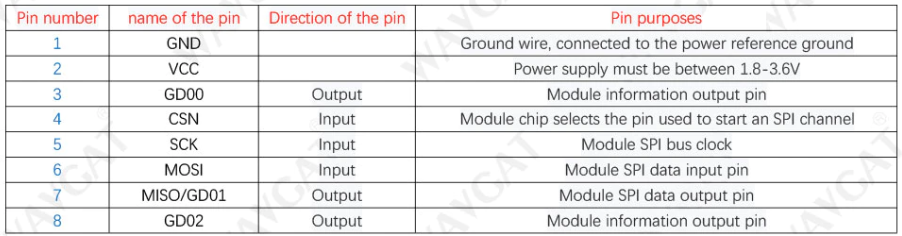

The module that I selected has the following pinout:

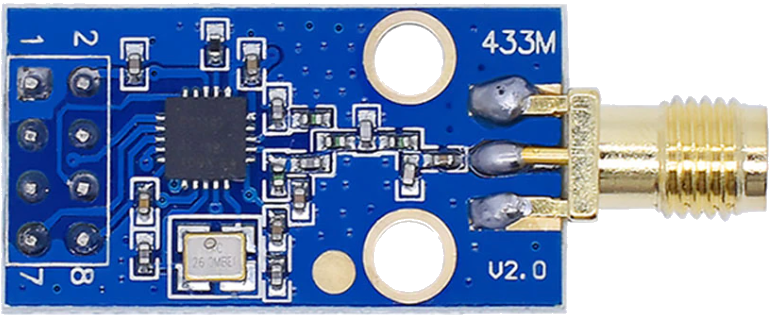

Corresponding to the physical PCB board layout:

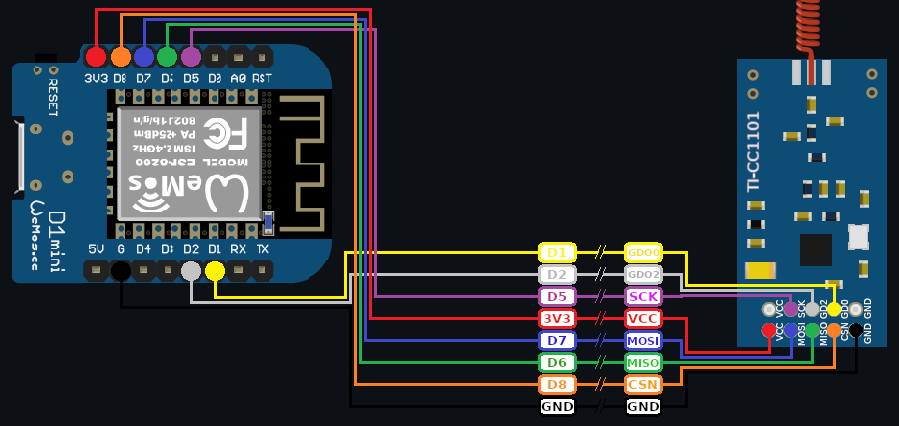

Based on the wiring diagram here I would need to make the following connections.

CP1101 ESP8266 Mode Notes
GD00 D1 Output Module Info output pin
GD02 D2 Output Module information output pin
SCK D5 Input SPI bus clock
VCC 3V3 - Power supply must be between 1.8-3.6v
MOSI D7 Input SPI data input pin
MISO D6 Output SPI data output pin
CSN D8 Input Chip select pin
GND GND - Ground wire

Arduino Libraries

The following libraries are required to compile the project:

For simplicity and to ensure that your build works these have been included in my repository under the libs directory (here).

Project Usage

Usage is pretty straight forward, and can be done by following these steps:

Reverse Engineering

This section covers (at a high-level) how I was able to reverse engineer the remote codes and modify the existing project to meet my needs.

Capturing Codes

The first thing I needed to do was to capture any codes being sent by the remotes, this was as simple as modifying the sketch to log out the values captured by RCSwitch:

value = mySwitch.getReceivedValue();
prot = mySwitch.getReceivedProtocol();
bits = mySwitch.getReceivedBitlength();

Resulting in values like the table below:

Protocol Bits Value Dip Pos Action
11 24 16543350 0001 Fan Speed 1
11 24 16542838 0011 Fan Speed 1
11 24 16541814 0111 Fan Speed 1

Decoding the bits

At first glance this may all seem like nonsense - how does “16543350” turn on a specific fan to a specific speed? To answer that we first need to convert these values to their binary representation, this resulted in the following 24 bits:

| Int | A | B | C | D | E | F | | 16543350 | 1111 | 1100 | 0110 | 1110 | 0111 | 0110 | | 16542838 | 1111 | 1100 | 0110 | 1100 | 0111 | 0110 | | 16542838 | 1111 | 1100 | 0110 | 1000 | 0111 | 0110 |

Note: This table is referenced a LOT below {: .prompt-info }

This process was repeated for each possible command on the remote and compared once done, during my comparison the following stood out:

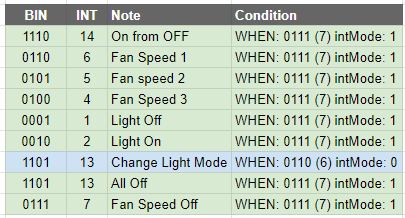

With this information I was able to piece together the following truth table:

Encoding Codes

The process of re-encoding the remote codes is as simple as reversing this process (covered later on), at least this is some good news - we can work with this.

Arduino Sketch

Implementing this in the original Arduino sketch was a bit of a hack on my end, however with some persistence I was able to do it.

Decoding RF Input

When a RF code is detected we need to decode it, this process begins with reading the received value:

value = mySwitch.getReceivedValue();

Followed by manipulating the value into somethin we can work with:

int subtractedValue = value - 0b111111000110000000000000;
int truncatedValue  = subtractedValue >> 8;
int id              = truncatedValue ^0b1111;

Once done we need to check that the RF protocol and bits are what we are expecting before we can continue.

if( prot == 11 && bits == 24 ) { }

Once confirmed we can start unpacking the Mode from the received value using the subtraction result.

int cmdMode = ((subtractedValue & 0b000011110000) >> 4) % 6;

We can finally turn our attention to extracting the actual command from the received code, this is done like so:

int command = subtractedValue & 0b000000001111;

All that is left to do is respond to the received code.

Encoding Codes

Encoding outgoing RF codes is basically reversing the process used to decode them, and looks like this:

int baseCommand = 0b111111000110000000000000;
int fanIdDips   = (fanId ^ 0b1111) << 8;
int commandInt  = 0b01110000;
int command     = 0b0000;

Next I switch based on the received MQTT attribute (attr) and command (payload).

Once set, the final command is generated by combining all the parts (basically adding the int values together) to create the expected int of 16543350.

int finalCommand = baseCommand + fanIdDips + commandInt + command;

This value is then transmitted using the same protocol and bit length used to receive it, this results in the fan thinking the command came from the remote.

If your fans do not respond to the command you should try changing the frequency value RF_FREQUENCY - I wasted a good 45 min with this one! {: .prompt-tip }

Everything Else

The rest of the code is pretty much in line with the source repository.

I have no doubtably introduced some new BUGS in the code-base and will need to tackle them when discovered!

Home Assistant

Once you have your ESP device deployed, adding it to Home Assistant is as simple as adding an MQTT fan and light entry per fan you wish to control.

MQTT Fan Configuration

In this case I am creating an entry for my remote with a DIP switch position of 0001:

mqtt:
  fan:
    - name: "Master Bedroom Fan"
      state_topic: "home/fans/0001/on/state"
      command_topic: "home/fans/0001/on/set"
      preset_mode_state_topic: "home/fans/0001/speed/state"
      preset_mode_command_topic: "home/fans/0001/speed/set"
      preset_modes:
        - "off"
        - "low"
        - "medium"
        - "high"
      qos: 0
      payload_on: "on"
      payload_off: "off"

MQTT Light Configuration

In this case I am creating an entry for my remote with a DIP switch position of 0001:

mqtt:
  light:
    - name: "Master Bedroom Fan Light"
      state_topic: "home/fans/0001/light/state"
      command_topic: "home/fans/0001/light/set"
      qos: 0
      payload_on: "on"
      payload_off: "off"
      optimistic: false

Entities

Once restarted you should see all your fan and light entities in Home Assistant.

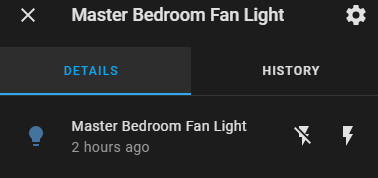

As expected the light entries work as per normal:

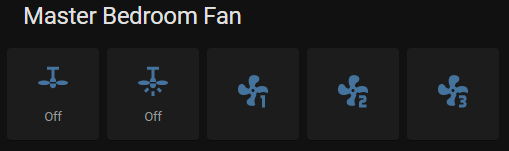

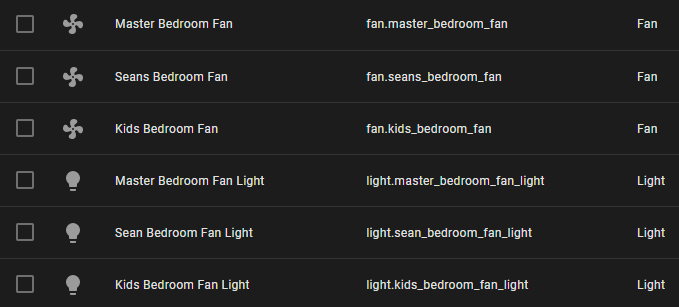

Along with the fan entities:

Dashboard Configuration

I am personally using the following configuration to control my fans in Home Assistant:

Backed by the following configuration:

square: true
columns: 5
title: Master Bedroom Fan
type: grid
cards:
  - show_name: false
    show_icon: true
    type: button
    tap_action:
      action: call-service
      service: fan.toggle
      data: {}
      target:
        entity_id: fan.master_bedroom_fan
    entity: switch.master_bedroom
    icon: mdi:ceiling-fan
    show_state: true
    hold_action:
      action: none
  - show_name: false
    show_icon: true
    type: button
    tap_action:
      action: call-service
      service: light.toggle
      data: {}
      target:
        entity_id: light.master_bedroom_fan_light
    entity: light.master_bedroom_fan_light
    icon: mdi:ceiling-fan-light
    hold_action:
      action: none
    show_state: true
  - show_name: true
    show_icon: true
    type: button
    tap_action:
      action: call-service
      service: fan.set_preset_mode
      data:
        preset_mode: low
      target:
        entity_id: fan.master_bedroom_fan
    entity: ''
    icon: mdi:fan-speed-1
    hold_action:
      action: none
  - show_name: true
    show_icon: true
    type: button
    tap_action:
      action: call-service
      service: fan.set_preset_mode
      data:
        preset_mode: medium
      target:
        entity_id: fan.master_bedroom_fan
    entity: ''
    icon: mdi:fan-speed-2
    hold_action:
      action: none
  - show_name: true
    show_icon: true
    type: button
    tap_action:
      action: call-service
      service: fan.set_preset_mode
      data:
        preset_mode: high
      target:
        entity_id: fan.master_bedroom_fan
    entity: ''
    icon: mdi:fan-speed-3
    hold_action:
      action: none

This can be repeated for each fan you wish to control.

Proto-boarding

Finally I tried to neaten everything up by placing all the components on a proto-board, and I will soon be designing and printing a case for the final project.

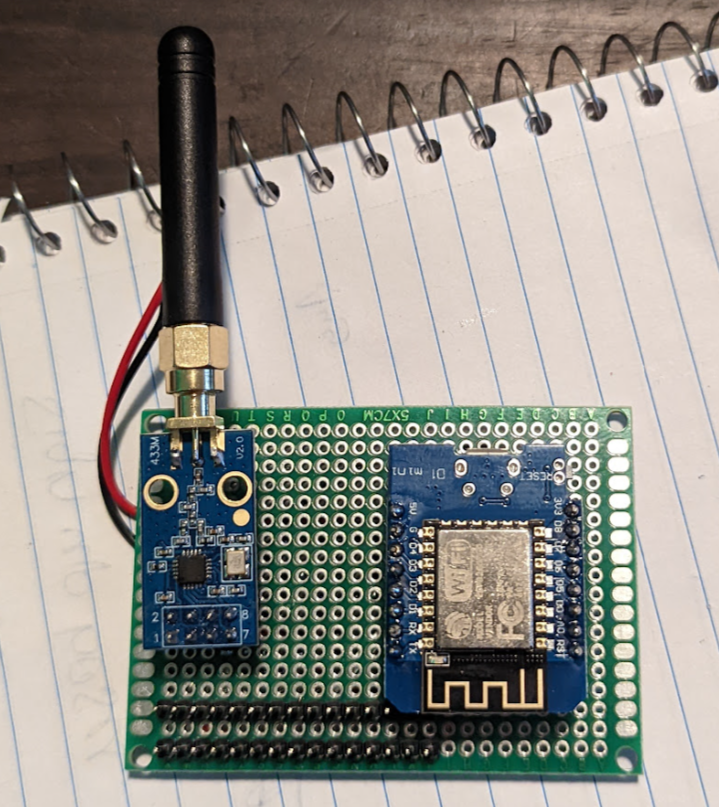

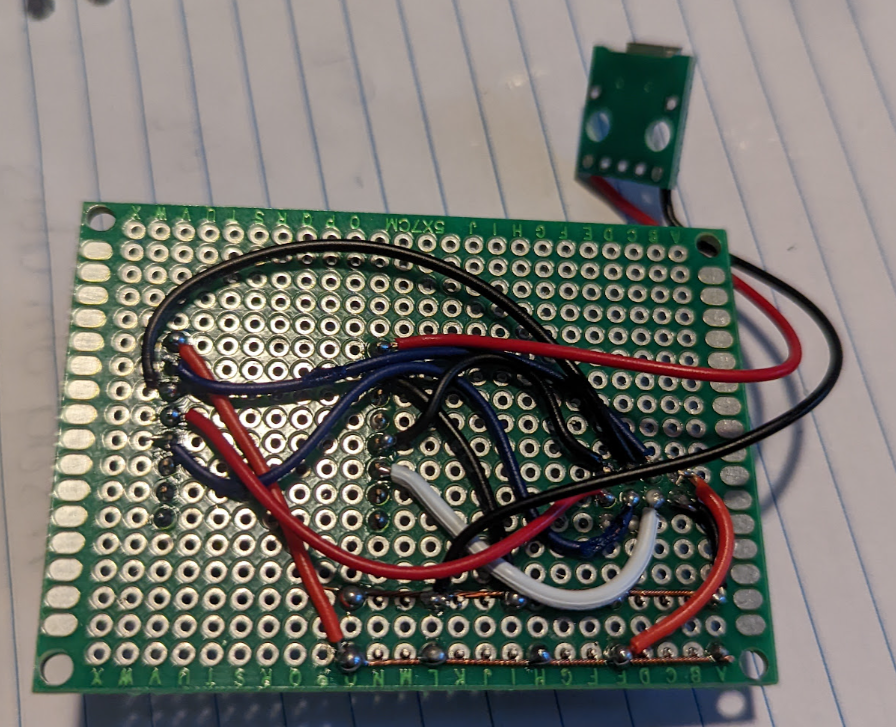

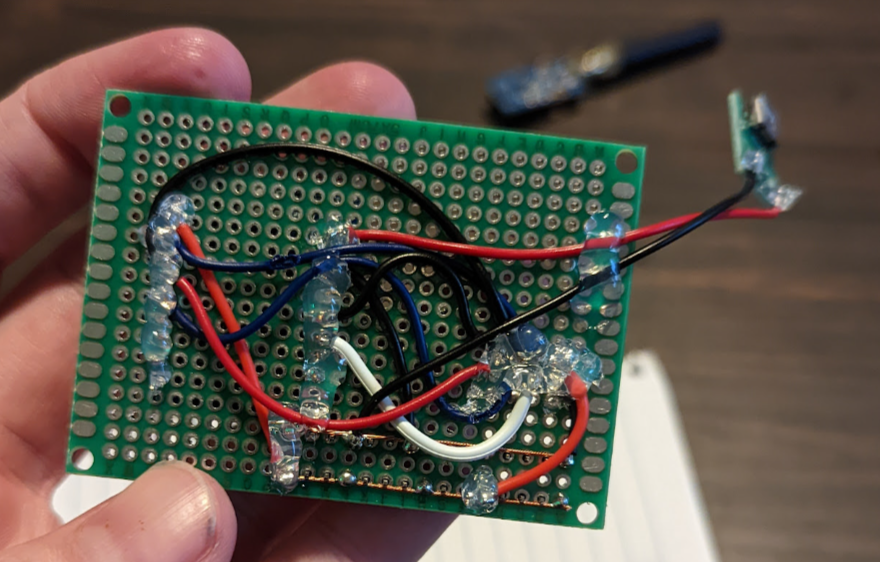

_Looking good from the front_ _The wiring at the back is not amazing_ _don't forget the hot glue_

In Closing

This project was a good brain teaser and forced me to re-learn basic comp-sci principles like bitwise operations and binary maths.

I would like to give a shout out to Ben Owen for the original work done here as it saved me a lot of time along with providing me with a good starting place.

Please feel free to clone my repo, make changes, submit pull requests as this is no way complete - yet!

Happy hacking.
