HASS On Unraid: DNS

This post is part of a series covering running various containers on Unraid.

Today I will be covering setting up DNS and HTTPS on your local Home Assistance instance making use of Duck DNS and Let’s Encrypt.

The process is pretty simple and requires only a few steps to complete.

Static IP Address and port forwarding

First you will need to set a static IP Address for your Home Assistant server, generally you would do this at your router level reserving a static lease for the MAC Address of your server.

Once you have a static IP Address you will need to forward all traffic on TCP_443 (HTTPS) to your Home Assistant server’s IP Address (again, usually done through your router).

Create a Duck DNS Domain

Next you will need to head over to Duck DNS and create a domain to use with your Home Assistance instance.

Configuring Home Assistant

Next you will need to create a new file in your configuration folder called http.yaml to store the required configuration settings.

Add the following contents to http.yaml:

ssl_certificate: /ssl/fullchain.pem
ssl_key: /ssl/privkey.pem
server_port: 443

You can include this configuration in Home Assistant by adding the following line to your configuration.yaml file: http: !include custom/http.yaml

Install Duck DNS Addon

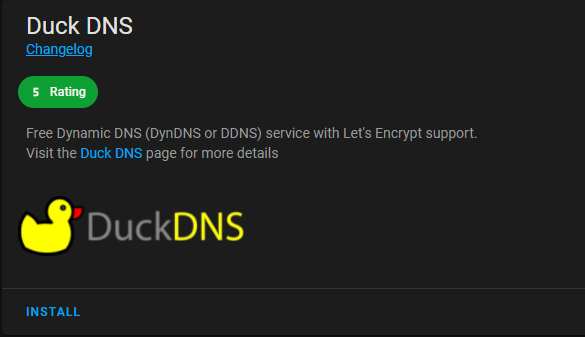

Under Home Assistant add ons, find and install the Duck DNS plugin:

Once installed follow the prompts when setting up the Add-On making sure to substitute your token where necessary. In addition, please ensure that the rest of your configuration looks like this:

accept_terms: true
algo: secp384r1
certfile: fullchain.pem
keyfile: privkey.pem

It should now be safe to restart Home Assistant for the changes to take effect.

NOTE: you will no longer be able to access Home Assistant on HTTP

You should now be able to access Home Assistant over HTTPS.
